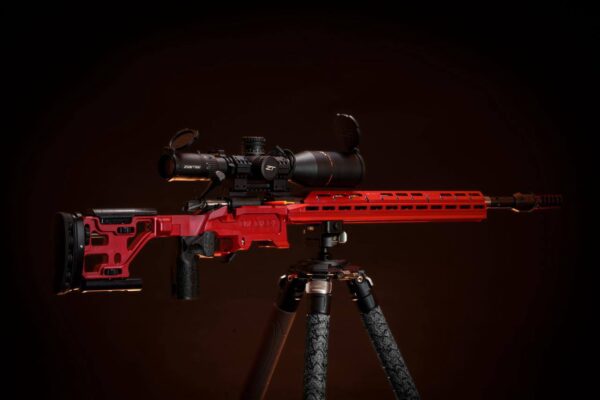

MANAEL CB12 Chassis: Ultimate Precision and Performance
Introducing the latest innovation from MANAEL – the CB12 Chassis. The ultimate precision rifle chassis for long range competition performance & customisation.
Engineered for shooters who demand perfection. Designed to do the hard work, so you’re free to focus on making impacts.
Made rugged and strong by Australia’s leading firearms accessory manufacturers.
The CB12 is the big brother of our PRS winning Sedajo Chassis, boasting a longer, wider, and heavier design for unbeatable stability and balance.
Engineered rugged and strong, the CB12 is your ultimate long range precision rifle competition chassis.
Why is this the best chassis for precision rifle performance?
Built to Smash Steel
Key Features:
- Super Wide, Super Long Extended Foreend: 516mm long (20 inches) and 62.8mm wide (2.47”). 12 M-Lok slots for optimal balance and accessory mounting. Perfect for heavy, long “truck axle” centrefire barrels or precision rimfire competition rifles.

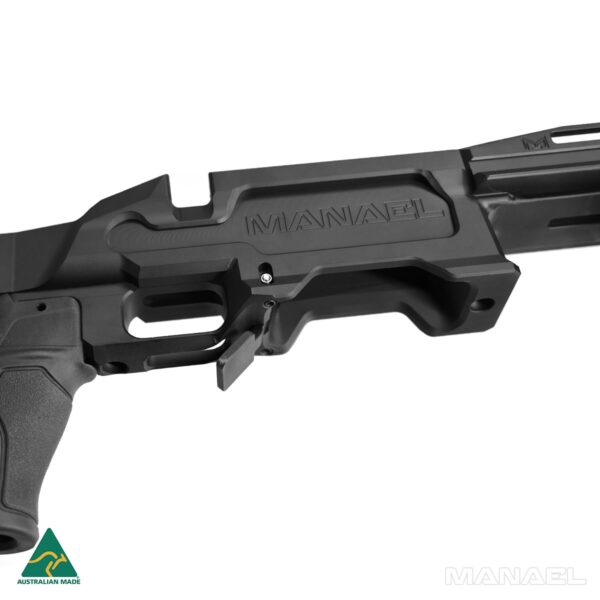

- Aussie Tough Barricade Stop: Features an inbuilt vertical barricade stop that protects magazines from accidental knocks and misfeeds, ensuring rugged reliability even when smashing hard into barricades.
- Ambidextrous Design: Perfect for left or right-handed barreled actions and shooters.
- Integrated Arca Swiss Rail: 508mm (20 inches) of mounting space compatible with all leading Arca accessories, including the MANAEL lineup.
- Ergonomic Design: Integrated trigger guard & ergonomic thumb shelf. Compatible with leading aftermarket triggers for precise control.
- MANAEL Adjustable Mag Latch System: Fine-tune magazine height without removing the magazine! Unique system ensures perfect cartridge feeding every time. External adjustment point allows for on-the-fly tweaks.
- Customisable to Perfection: Make it uniquely yours with its fully customizable features. From feature packed rear stock, interchangeable grips & weight adjustability, tailor every aspect to suit your shooting style and needs.
Why choose the CB12 Chassis?
What makes the MANAEL CB12 the best precision rifle chassis in Australia?
Elite performance: Developed with top competition shooters, the CB12 offers unmatched stability, customizability, and ruggedness.
The CB12 chassis competes with top-tier models like Masterpiece Arms Matrix Pro, XLR Envy Pro, KRG C4, and MDT Elite II.
With added benefit of being 100% Australian made tough, backed up by MANAEL’s comprehensive aftermarket care & packed with refined features others forgot.
MANAEL’s CB12 is the ultimate chassis if you’re serious about balance, stability and performance in long range rifle competition.
Here’s why the CB12 is your ultimate precision rifle chassis

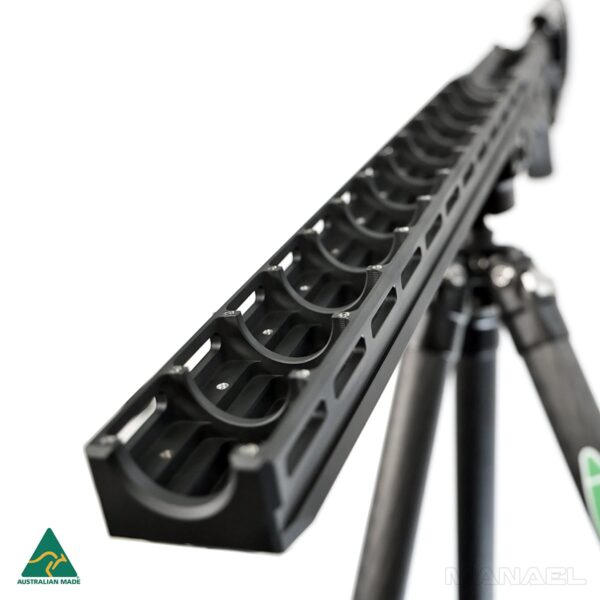

Extra Long & Strong Foreend:
- Whopping 516mm (20 inches) foreend length for better balance
- Ultra-wide 62.8mm (2.47”) foreend width for better stability
- 12 M-lok slots on each side for MANAEL Thumb Chocks and other accessories

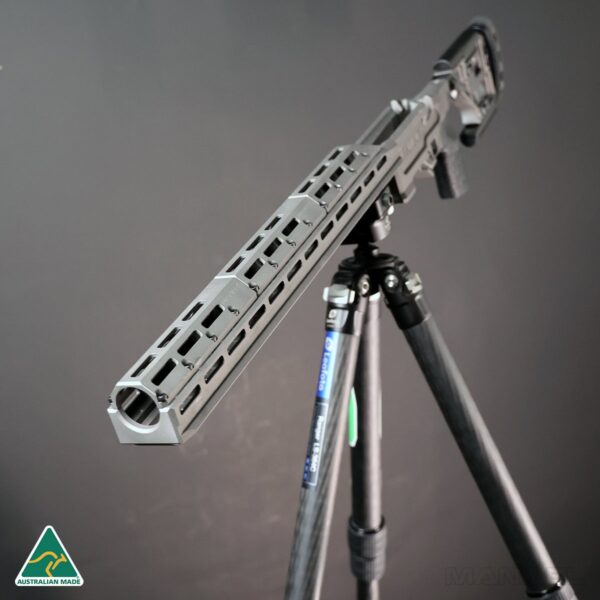

- Room for 3x MANAEL Night Cover Bridge Rails for barrel protection, grip points & accessory mounting
- Internal reinforcement bridges for superior rigidity and strength- no flex or movement!

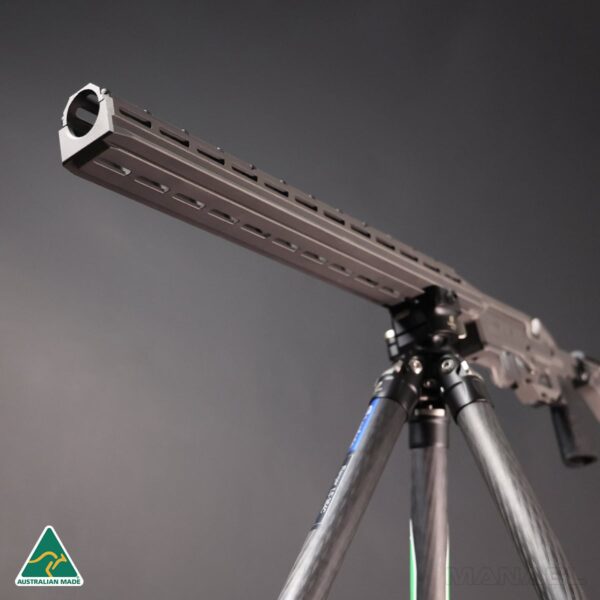

Whopping 20″ Arca Swiss Rail:
- 516mm (20”) integrated Arca Swiss rail
- Compatible with all leading Arca accessories & MANAEL accessories

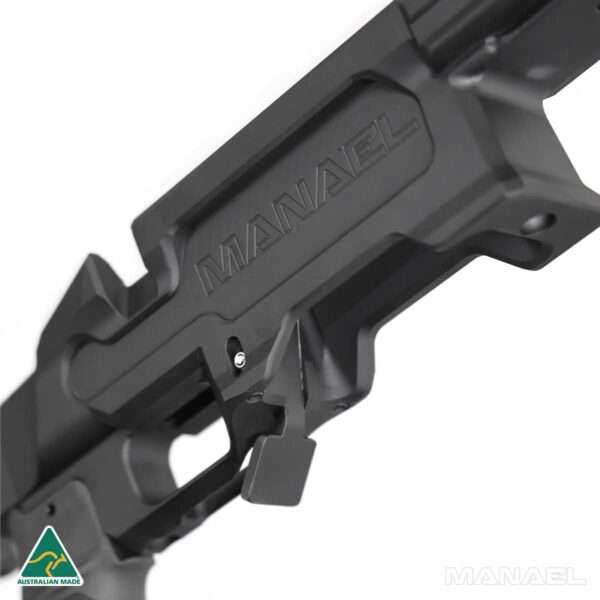

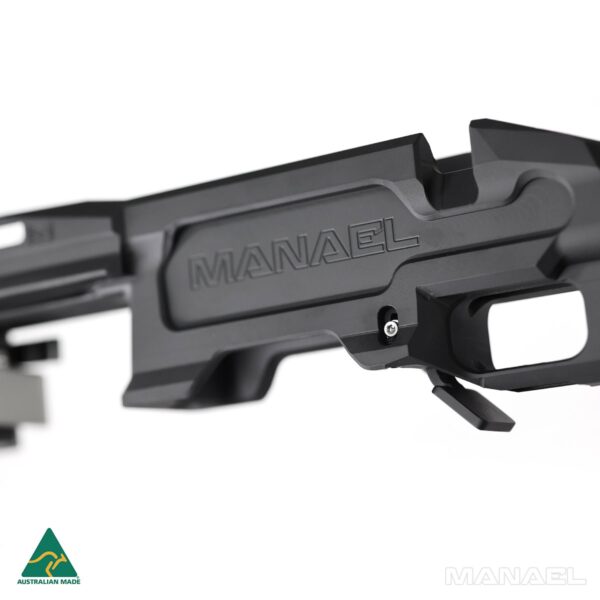

MANAEL Adjustable Mag Latch System:
- Adjust mag seating height without removing the magazine!
- External adjustment point with ability for microadjustments on the fly
- Compatible with various brands (ARC, MDT, AICS, AccuMag, Bergara etc) for perfect cartridge feeding
Magazine & Mag Well

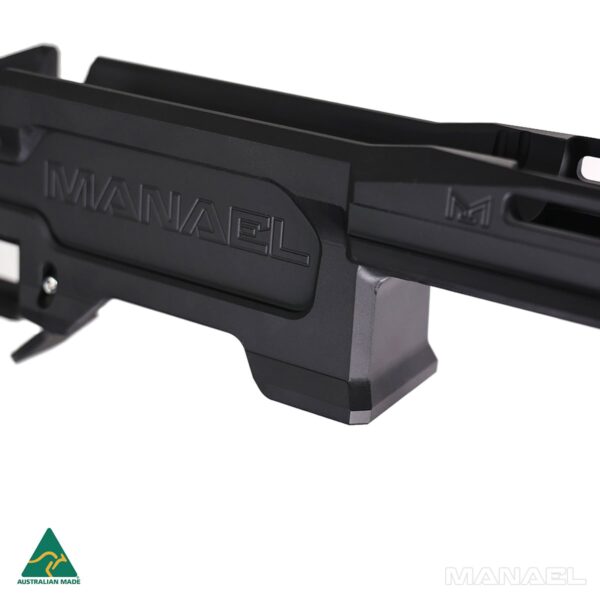

- Massive Flared Mag Well for easy mag insertion everytime
- Unbeatable mag protection with Integrated Oversize Vertical Barricade Stop
- MANAEL Adjustable Mag System to perfect feeding height without removing the magazine
- Compatible with leading brand AICS magazines such as AccuMag, ARC, MDT, AICS, Bergara, MDT Poly lower steel uppers, MDT all steels, Vudoo
- Magazine not included
Ergonomic Handling & Trigger Housing Design

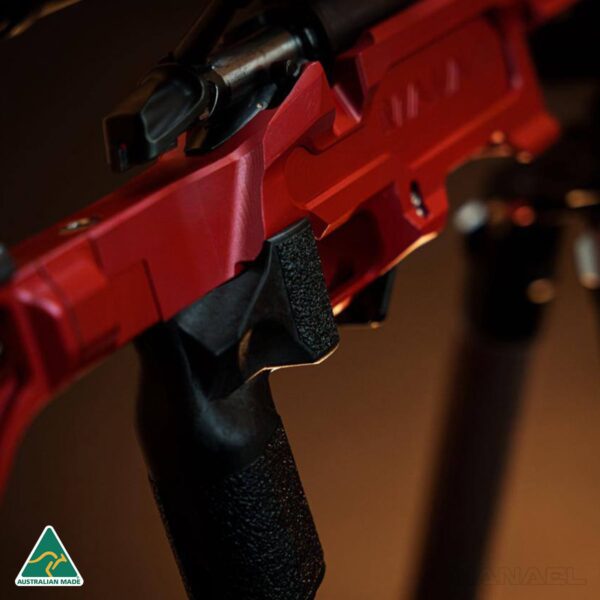

- Integrated trigger guard with ergonomic thumb shelf
- Oversize trigger guard
- Compatible with leading aftermarket Remington 700 footprint triggers (such as TriggerTech, Timney, Jard, Jewel, Rifle Basix, Huber, Bix ‘n Andy, Elfmann Tactical)
Easy Change Grip
- Standard AR-compatible grip included
- Interchangeable with leading brand A2 Flat Top Grips including MDT, Magpul and Masterpiece Arms (MPA) EVG

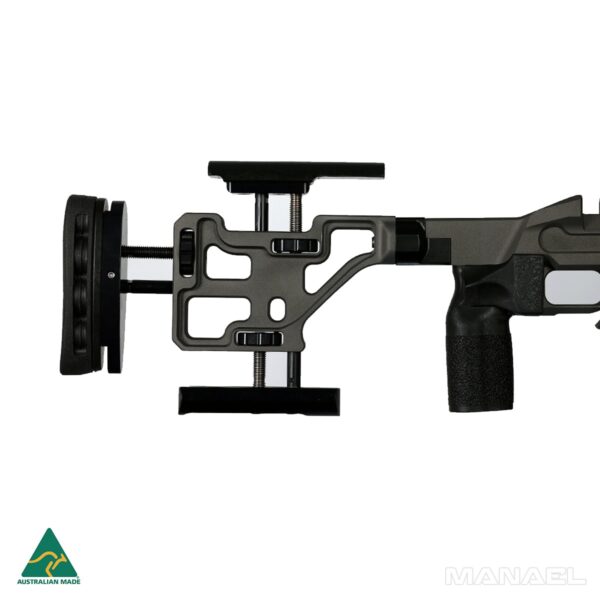

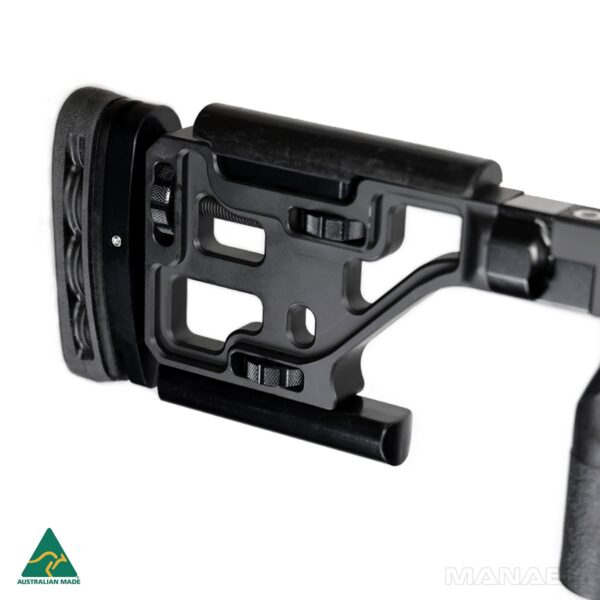

Unbeatable Rear Stock Customisation

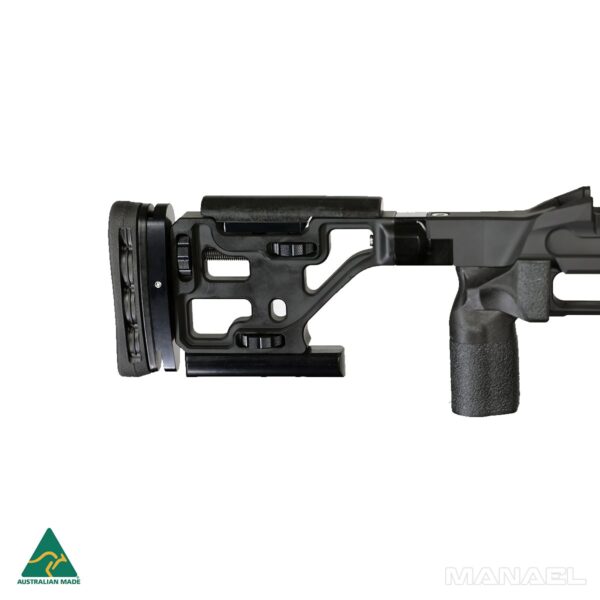

- Rear stock adjustable length of pull (13.5” to 15.5”)

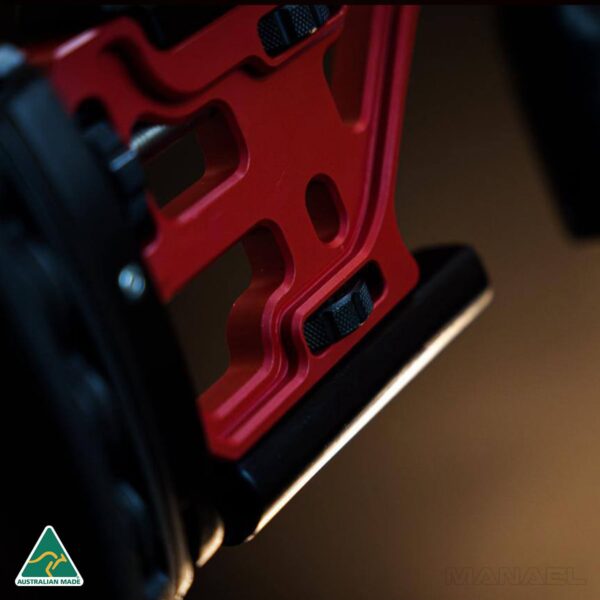

- Rapid adjust thumbwheels with detent
- Adjustable cheek height
- Adjustable slew cheek (left/right)
- Adjustable height and position bag rider (up/down/forwards/backwards)
- Adjustable length and height butt bad (in/out/up/down)
- Compatible with NSW stock rear requirements.
- Limbsaver recoil pad
- Uses Australian designed SCSA Rear Stock mount style
- Interchangeable with all MANAEL Rear Stocks / SCSA Taipan X Rifle and TSPX Chassis Rear Stock
- AR Buffer Tube Stocks & Picatinny Mount Stock adaptors available
Balance & Weight Tuning Options
- Starting weight of 3.5kg (7.7lb)
- 12 internal weight slots for MANAEL Internal Performance Weights
- Boost weight by 1.6kg (3.5lb) with internal weights (available separately)
- Additional weight balancing/tuning with compatible MANAEL Stackable External Weights

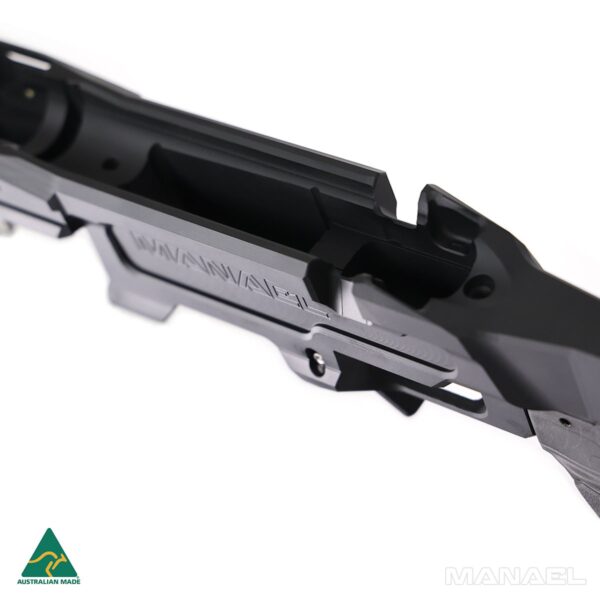

Rifle Inlet & Bolt Design
- Rear stock design allows complete bolt removal without disassembly

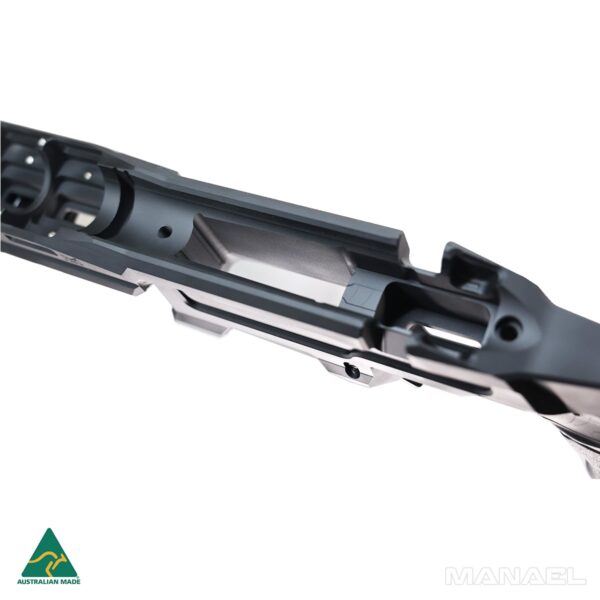

- Machined bedding surface system allows rifle to lock into position easily & securely
- Drop-in fit and DIY install for compatible barreled actions
- Action screws provided
- Ambidextrous for left and right handed rifle bolts
Rifle Inlet compatibility
The MANAEL CB12 Chassis is designed as drop-in fit for common precision competition and long range rifles including:
- Remington 700 Short Action
- Short Action Aftermarket / Clone rifles eg. Bergara, Vudoo, Impact Precision, Lone Peak Arms, Defiance, Terminus, Curtis Custom, BAT, Zermatt / Bighorn, MPA, ARC, Falkor, Kelby, Ultimatum, Stiller, Surgeon, etc
- Tikka T3 (expressions of interest)
Barrel Accommodation
-
- Super wide barrel channel to fit 1.25” (32mm) straight barrels
- MANAEL Bloop Tubes available for shorter rimfire barrels
Color Finish
-
- Finished in Cerakote for durability and protection
- Offered in black with custom finishes available by request
Local Manufacturing and Support
-
- 100% Australian-made and designed by MANAEL
- Backed by a strong warranty and after-market support
MANAEL CB12 Chassis Dimensions & Inclusions:
- Overall Assembled length (at 13.5″ LOP): 1009mm / 39.7″
- Extended length (at 15.5″ LOP): to 1059mm / 41.6″
- Overall weight: 3.5kg / 7.7lb
Included:
- MANAEL CB12 monolithic chassis body & foreend
- MANAEL CB12 Adjustable Rear Stock & Recoil Pad
- A2 flat top grip
- 2x MANAEL Night Vision Cover Bridge Rails
